A 3G weld test from ATS uncovers flaws in a weld, its materials, and the welder’s process. Welds can take on a combination of types, positions, and joints. The most common weld types are fillet (F) and groove (G) welds that combine two materials. Groove welds fill the space between two materials for maximum strength. For any weld type, the welding position and joint shape can impact the weld’s difficulty. The four main weld positions are:
- 1 – Flat
- 2 – Horizontal
- 3 – Vertical
- 4 – Overhead
Thus, a 3G weld has a vertical groove connection formed when a welder moves the electrode uphill or downhill to fuse two materials along a joint. While 3G welding can produce welds with similar quality to horizontal and flat welding, the welder must work slowly and against gravity when penetrating the joint between thick materials.
Welder Observations
ATS can certify welders, welds, and welding processes. Our clients typically request a certified weld inspector (CWI) to observe the practices and output of a welder before hiring. Manufacturers want welders who will be cautious and attentive when welding to avoid injury, defective welds, and liability in case of catastrophic failure. Vertical welding is a complicated process with an increased risk of injury from dripping or spattering molten metal. ATS employs a team of American Welding Society (AWS)-certified weld inspectors who can observe a welder throughout the welding process for code compliance, safety measures, and technique. Some of the most common weld techniques include:
- Flux-Cored Arc Welding (FCAW)
- Gas Metal Arc Welding (GMAW)
- Gas Tungsten Arc Welding (GTAW)
- Stick or Shielded Metal Arc Welding (SMAW)
Weld Testing Methods
ATS weld inspector can test whether a weld meets standards and codes through various methods. We offer nondestructive inspections such as:
- Computed Digital Radiography (CDR)
- Liquid Penetrant Testing (PT)
- Magnetic Particle Testing (MT)
- Traditional Radiography Testing (RT)

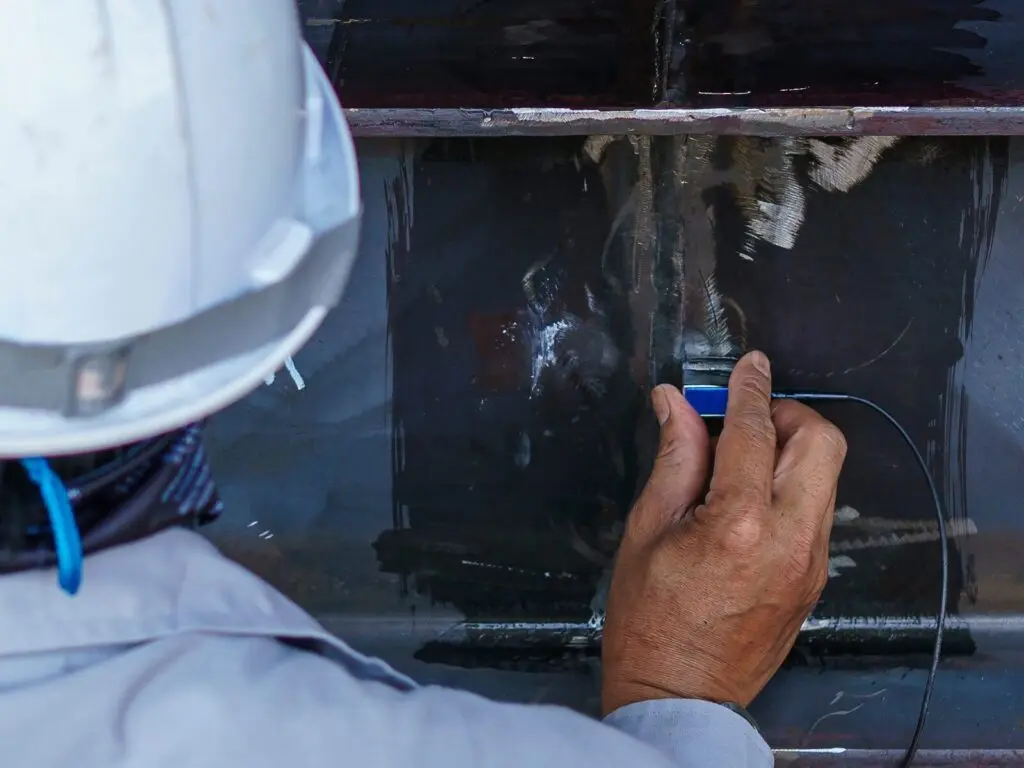

- Ultrasonic Testing (UT)
- Visual Testing (VT)
Our weld inspectors can also perform destructive weld tests to evaluate a weld’s characteristics and strength before failure. When conducting macro etch testing, an inspector etches a weld sample with an acidic solution to reveal defects in the weld, surface, and heat-affected zone. Another common weld service is transverse tension testing, where an inspector exposes the specimen to tension perpendicular to the grain until failure occurs, usually at the weld joint. During guided bend testing, the inspector bends the specimen over a radius longitudinally or transverse to the weld axis to determine integrity and strength.
Weld Test Specifications
Weld inspectors from ATS can tailor their evaluations to meet a client’s needs. For instance, an inspector can confirm if a welder follows standards from organizations such as ASME, AWS, ISO, API, MIL-STD, PED, and EN. Our weld lab also allows inspectors to identify potential damages and weld characteristics, such as:
- Defects
- Leaks
- Porosity
- Slag
- Strength
- Tightness
- Undercutting
- Weaknesses
- Weld material distribution
