ATS performs GPR inspection services to give clients accurate information about the dimensions of a concrete slab and the locations of embeddings. Ground penetrating radar (GPR) is a nondestructive testing method that uncovers hidden defects and objects in concrete. A quick GPR survey from ATS can save clients thousands of dollars overall and detect potential dangers before the structure is compromised.
Our GPR Process

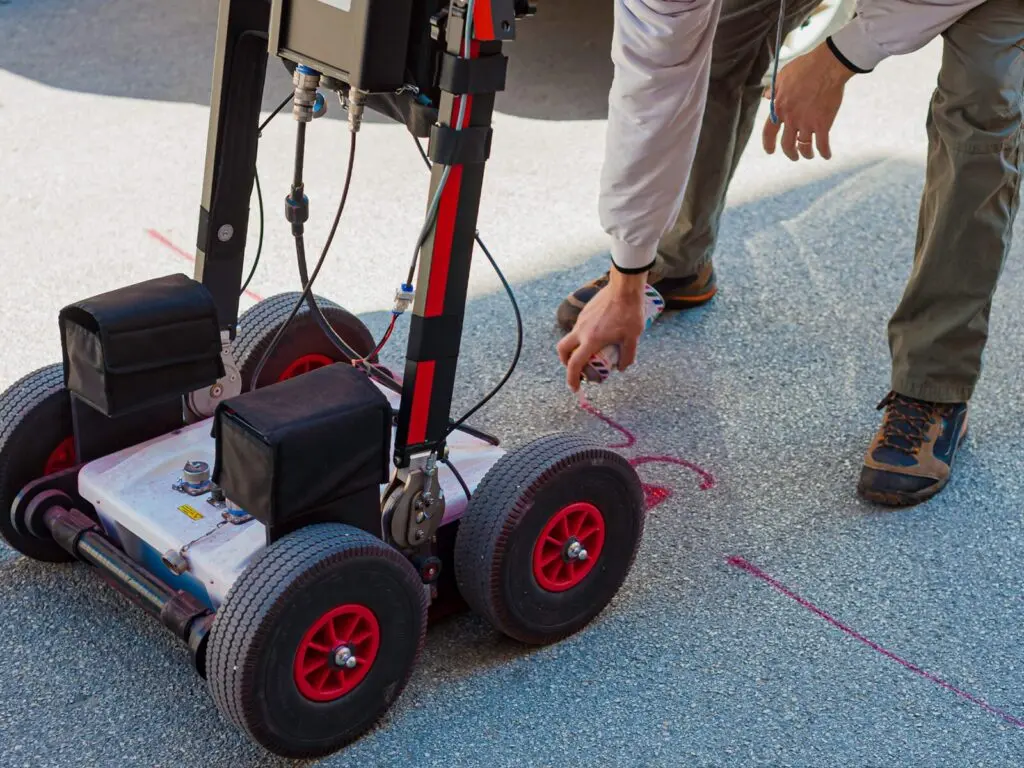

GPR equipment consists of an antenna, receiver, and computer. During a scan, the antenna emits electromagnetic pulses that reflect off embedded objects, such as rebar, post-tensioning cables, and conduits. The receiver sends the reflected frequencies to the computer for a visual. Our technicians can analyze the GPR findings and verify their conclusions with ferrous metal scanning.
GPR is a versatile tool used by a variety of industries, including archaeology, construction, and utilities. Engineering firms like ATS perform GPR inspections of concrete slabs that form the foundation and floors of a structure. Clients may request a survey for multiple reasons:
- To accurately map the concrete
- To detect voids, cracks, and other anomalies
- To measure concrete thickness
- To calculate the concrete coverage of rebar
Why Choose ATS Inspection Services?
Safety
The best time for a GPR scan is before making any changes to the concrete surface by drilling, cutting, or coring, as these actions can damage the concrete slab and cause irreparable harm. Hastily drilling into a concrete structure may impact the strength of the concrete itself, leading to cracking over time. This can also cause life-threatening injuries or death. For example, a cut electrical line may electrocute workers.
Additionally, excessive drilling can weaken the concrete’s structural integrity and damage critical embeddings. If a drill or cutting device reaches a post-tensioning cable, the consequences could be catastrophic for the structure and anyone nearby.
Accurate Data
GPR surveys minimize the guesswork so you can drill safely and accurately. For instance, if a customer needs to locate utility lines, a GPR scan is able to pinpoint the location and depth of these lines without disturbing the structure.
A GPR survey also provides information about the underlying cause of damages. For instance, a customer may request a GPR survey for a concrete slab with a water leak. The survey may also detect cavities and other concealed threats before they reach a critical stage.
Trained Experts
GPR scanners display data in cross-sections of the distance and depth of a concrete structure. However, 2D scanners do not specify what the embedded objects are. A trained ATS technician can interpret the results to identify the embeddings, such as metal piping or steel rebar.
Cost-Effective
GPR helps construction and repair crews work efficiently and safely. Our inspection services provide multiple additional benefits:
- Cost-effective
- Real-time results
- Minimal worksite disruption
- Nondestructive testing
About the ATS Family of Companies
ATS and our Family of Companies serve clients nationwide. Our keen insight into engineering, calibrations, and material testing empowers multiple industries, including:
Founded in 1967, ATS has developed a reputation for high-quality customer service and a focus on safety. We facilitate safe operation by providing clients with accurate information and thorough analysis of tested products, components, equipment, and materials. Our engineers and technicians can perform on-site and laboratory tests and inspections.The lab in our Georgia headquarters has attracted recognition from industry authorities:
- ISO 9001:2015 – Quality Management System
- ISO/IEC 17025:2017 accreditation in mechanical, electrical, chemistry, nondestructive, and calibration services
- NADCAP accreditation in material and nondestructive testing
- 10 CFR Part 21 – Reporting defects and noncompliance
To learn more about our awards and recognition, click here.
Contact Us
Don’t leave safety up to chance! Call +1 (888) 287-5227 or complete the form on this page if you need ground penetrating radar services. We can send our qualified experts to your location for an accurate and cost-effective scan.
