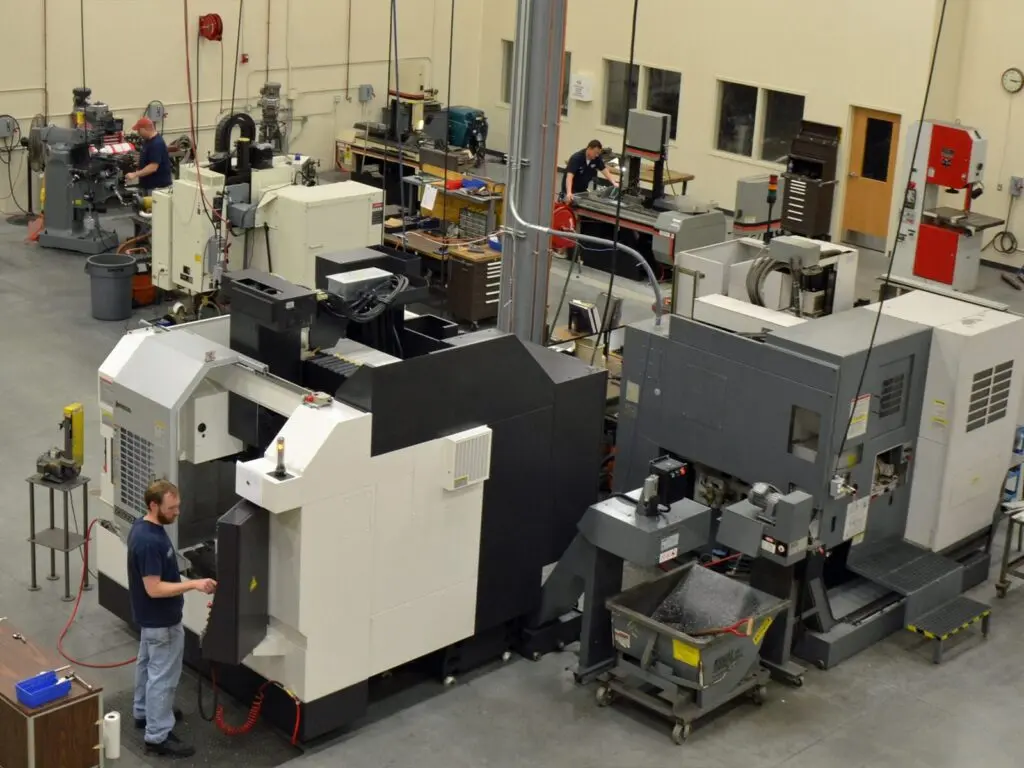

Applied Technical Services has a well-equipped machine shop in-house for specimen preparation and fixture fabrication. We maintain the following equipment to perform machining services for our clients upon request.

Machining Services / Capabilities

  • Wire EDM
  • Waterjet Services
  • CNC Milling
  • Mastercam
  • CNC Turning
  • Solid Works

Wire EDM

EquipmentSpecs
Makino Wire EDMMax Load — 3,300 lbs
Cutting Height — 15″
Cutting Length — 39″ x 31″

Waterjet

EquipmentSpecs
MaxiemCutting Travel — 5 ft x 5 ft
Maximum Thickness — 6 inches
Max Load Support — 250 lbs/ft2

Milling

EquipmentSpecs
(2) Okuma CNC Mill41″ x 22″ x 18″
Max table load — 1900lbs
(2) Bridgeport Manual
(2) Haas (CNC Mill)
42″ x 9″
16″ x 30″ x 16″

Turning

EquipmentSpecs
(2) Mazak Quick TurnChuck Size — 8″ & 10″
Maximum Machining Diameter — 14″
Cutting Length — 20″
(2) Haas Tool Room Lathe
40″ Taper
Maximum Machining Diameter — 16″ & 20″
Cutting Length — 30″

Cutting

EquipmentSpecs
Bekamak BMSY 810CMax Load — 2,500lbs
+45° Cutting 18″
Cutting Height — 23″
Cutting — 33″ x 31″
Dake/Johnson Vertical Saw
(3) Marvel Vertical Saws
fds
18″ x 22″
18″ diameter

Surface Grinding

EquipmentSpecs
OkamotoChuck Size — 16″ x 32″
Table Capacity — 1,540 lbs

Lifting

EquipmentSpecs
DEMAG3 Ton Overhead Crane

As well as various handheld and portable tools for field work.

MasterCam®: Mastercam® for SolidWorks®, combines the world’s leading modeling software with the world’s most widely-used CAM software. Parts can be programmed directly in SolidWorks to provide 2D and 3D High Speed machining for complex parts.

Solidworks®: Complete 3D software tool that lets us create, simulate, publish, and manage our data. Allows us to design products better, faster, and more cost-effectively.
