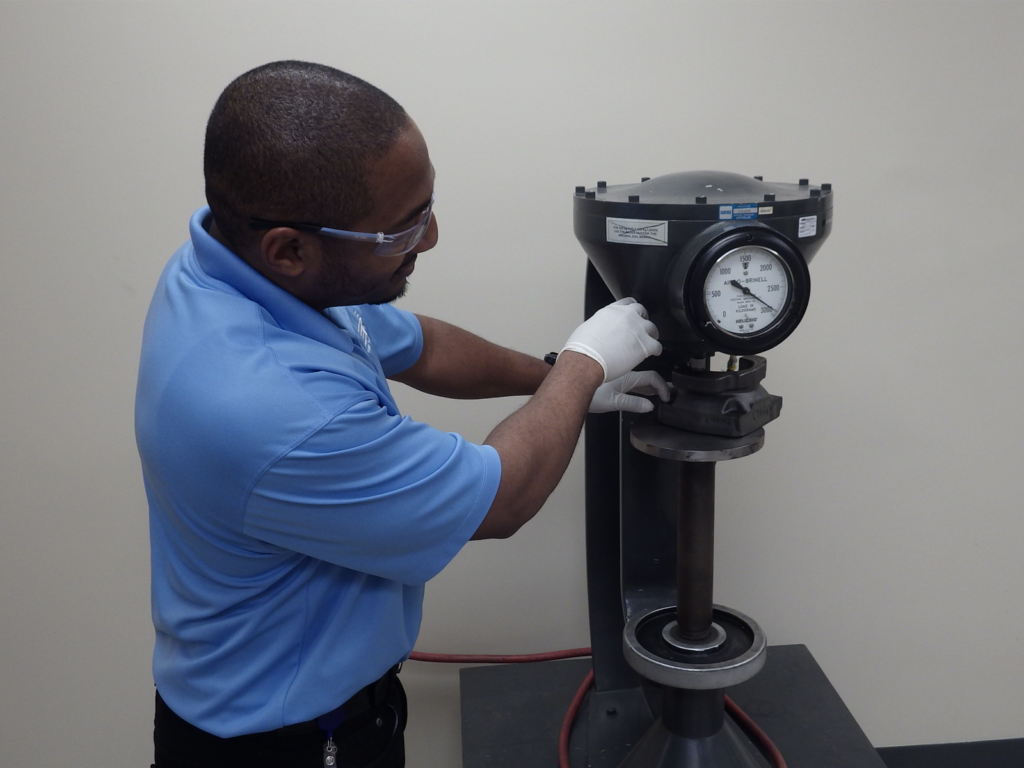

At Applied Technical Services, we perform ASTM Brinell hardness testing in the mechanical testing lab following the ASTM E10 Standard. This testing method is usually used for materials with a rough surface.

What is Brinell Testing?

Brinell hardness testing aims to determine whether the sample’s surface is resilient or malleable. When the spherical indenter drops, if there is a large indent left behind, then the texture is soft. If the spherical ball leaves a slight dent, it indicates the surface is a harder material.

After the spheric indenter drops, we measure the diameter of the indentation. The processing and treatment of material all affect its hardness and potential applications.

Common Test Forces

The most common force used for ASTM Brinell hardness testing ranges from 500 kgf to 3,000 kgf. Non-ferrous materials use a power of 500 kgf, and materials made of steel and cast iron usually use 3,000 kgf. Forces ranging from 1 kgf to 1 mm are also used, but they are infrequently applied.

Materials Frequently Tested

  • Cast Irons
  • Aluminum
  • Cooper Alloys
  • Steels

Advantages of Brinell Hardness Testing

  • Quick
  • Applicable to light/heavy metals
  • Easy to measure results
  • Useful for irregular surfaces

Requirements for Testing

  • The surface where the test sample is placed must be cleaned beforehand.
  • Select the proper indenter level
  • Set the test table to the correct elevated position
  • Keep the load on the specimen for the time specified and then release
  • Remove the specimen and measure the indentation made

Hardness Testing Standards

Our experts can test to common hardness testing standards, including:

  • ASTM E10
  • ASTM E18
  • ASTM A370
  • ASTM E384
  • ASTM E92
  • ASTM A956
  • EN 1043-1
  • EN 1043-2
  • ISO 6506-1
  • ISO 6507-2

About ATS

ATS leads a growing Family of Companies (FoC) with locations nationwide. We provide quality service alongside our experts, who work dedicatedly to provide you with the most accurate and detailed results when testing your materials. Our customer service representatives help our clients connect with an available expert to resolve their inquiries.

Contact Us

If you need Brinell hardness testing, call +1 (888) 287-5227 to be matched with a qualified lab near you.
